The planter used boxes, the mouse, profiles, loops and checks. This page is a tour of what else hackerscad does, one small model at a time: a hook made ready to print, a label for the planter cut from a drawing, and shorter stops on sketches, curved shapes, libraries and technical drawings. Each model is complete: press New, select all the code (Ctrl+A), paste the model over it, and change it as you like.

Start from an example

Examples, next to Export, opens ready models: the bag clip, the espresso cup of the README, the planter of this tutorial, a tour of the language, the pillow block of chapter 14, and the other models of the examples folder. The tour uses each thing the language has once (if, for, while, switch, functions, structs, lists) and says in a comment what each one makes appear in the view or in the console. Change a number and watch.

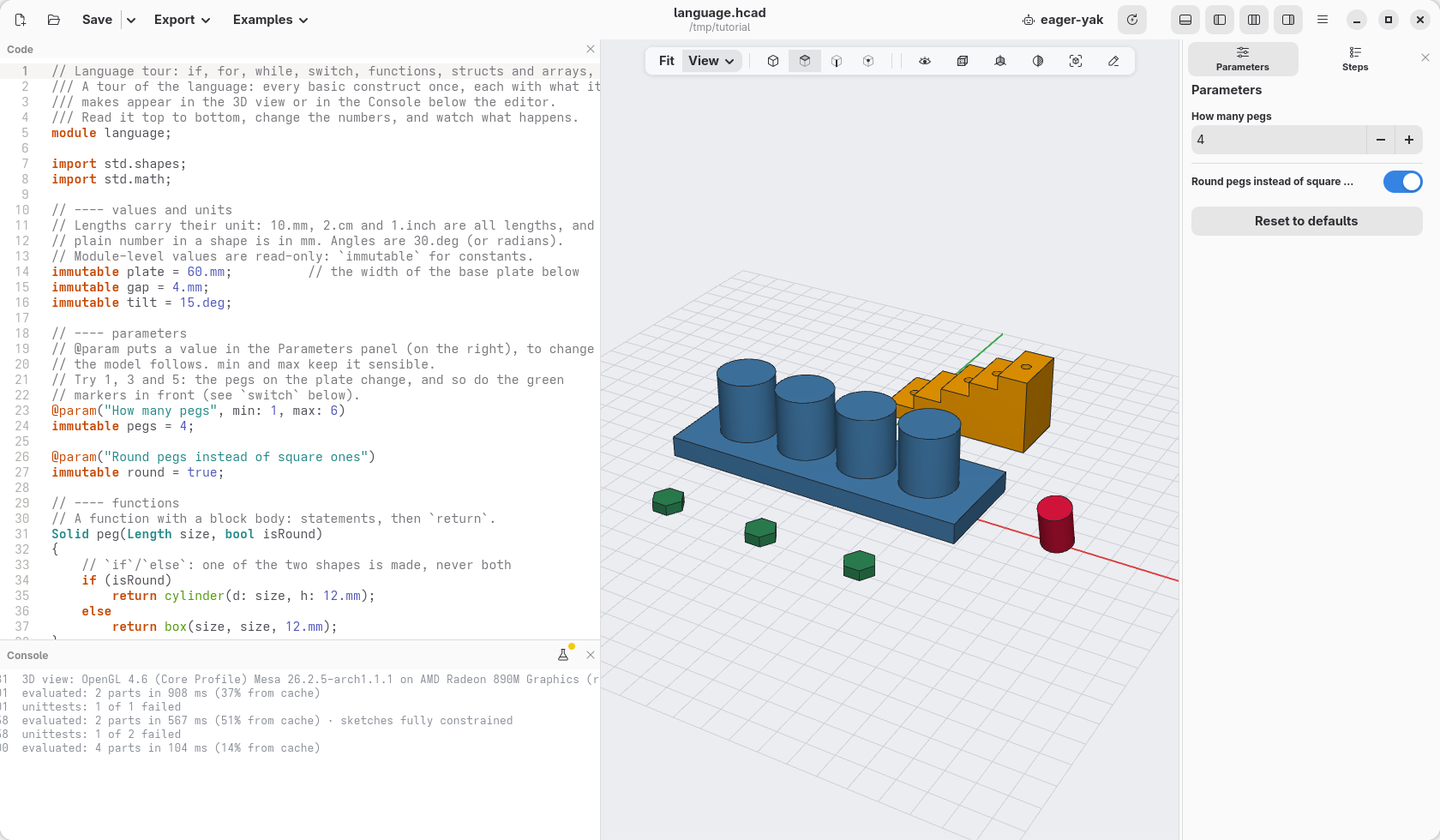

The language tour

An example opens as a new model, not saved yet: nothing you change is lost from the original, and Save asks where to keep it.

A hook, ready to print

A hook for the wall: a plate with a hole for a screw, and an arm. The screw goes above the arm: what hangs on the arm pulls the top of the plate away from the wall, and the screw holds it there.

module hook;

import std;

/// A hook for the wall: a plate with a hole for a screw, and an arm to
/// hang things on.
@part("steelblue")
Solid hook()
{
    auto plate = box(30.mm, 4.mm, 60.mm);
    auto arm = box(30.mm, 20.mm, 6.mm).move(y: -12.mm, z: 30.mm);
    return (plate + arm)
        .cut(circle(d: 4.5.mm), on: faces.back,
            at: vec(0.mm, 0.mm, 48.mm), through: true);
}

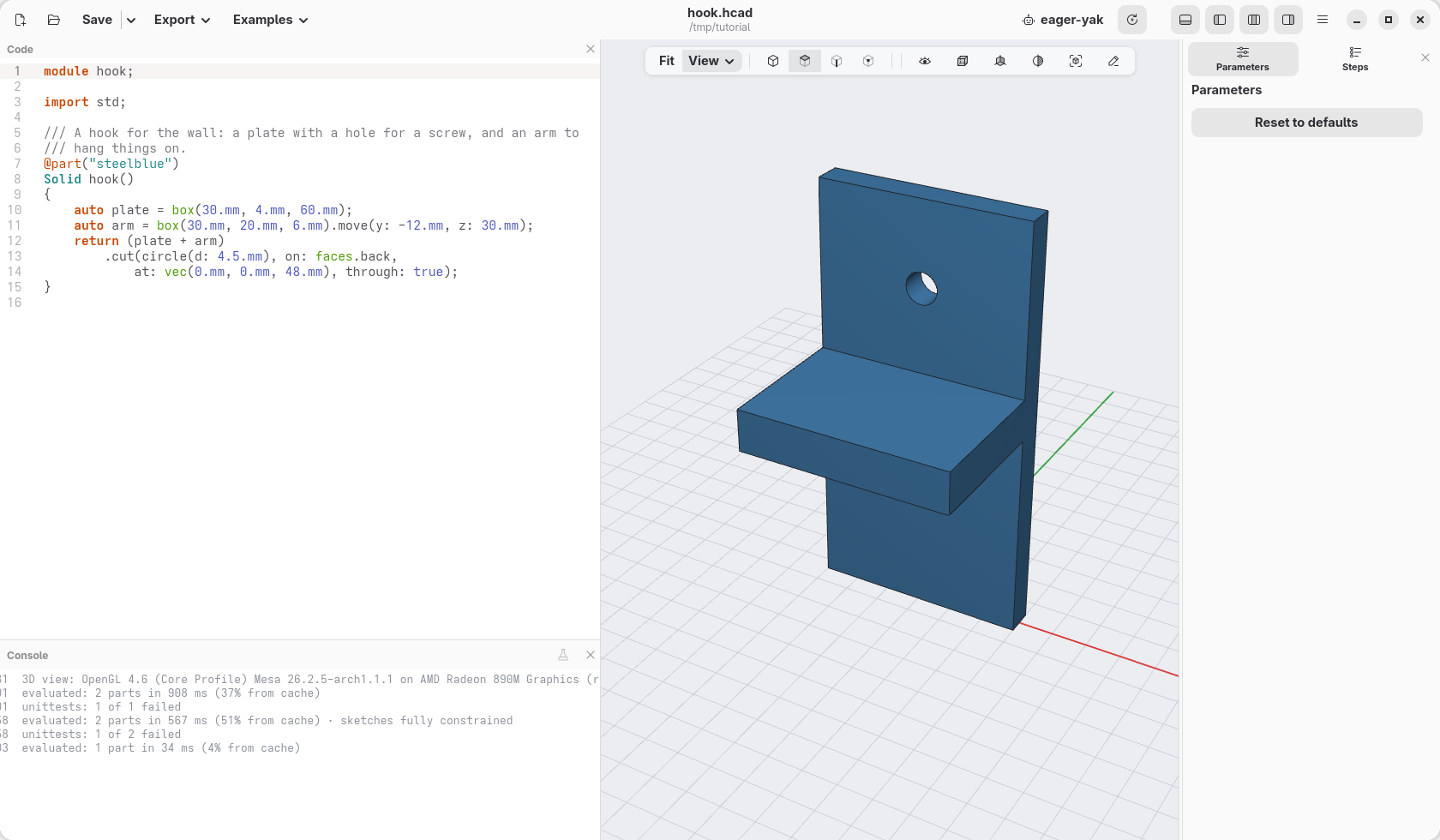

The hook

Pull a face

The arm is a little short. Right-click its end, the small face in front, and choose Extrude face…: type 10.mm over the value. The face moves 10 mm out and the arm grows with it, its sides still one face each. Cut face… does the opposite, into the material.

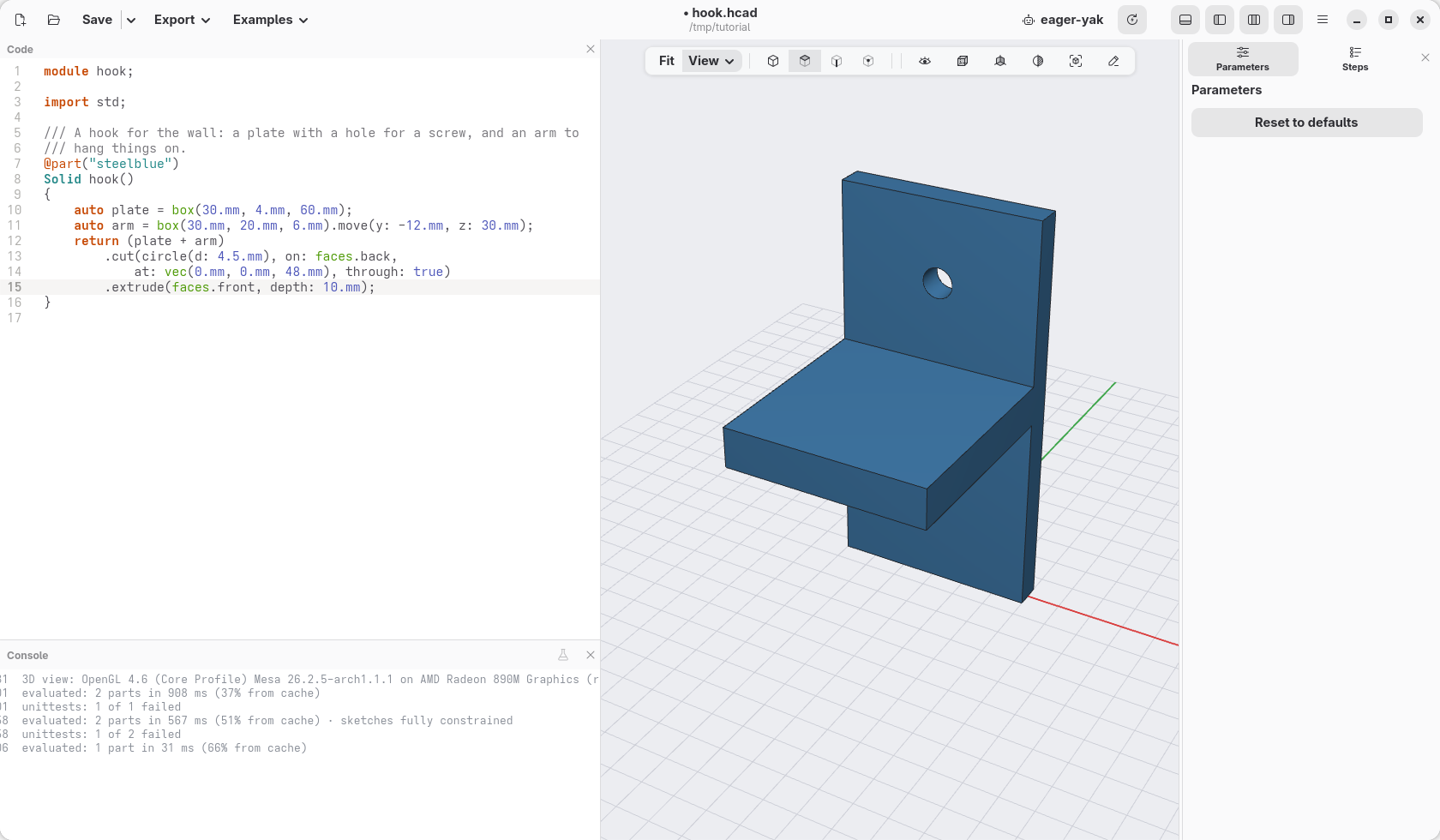

The arm, 10 mm longer

        .extrude(faces.front, depth: 10.mm);

Will it print?

A printer builds a model in layers, from the bottom up. Each layer must rest on the one below: a surface that faces down, with nothing under it, droops. Up to about 45° from a wall a layer still rests on the one before; past that, the slicer adds supports, which you cut away afterwards. Walls thinner than two lines of the nozzle (0.8 mm for a 0.4 mm nozzle) do not print well either.

In the cube of the view bar, tick Printability: what overhangs is striped red, thin walls are cross-hatched violet, and the status line gives their areas. Turn the view to see the hook from below:

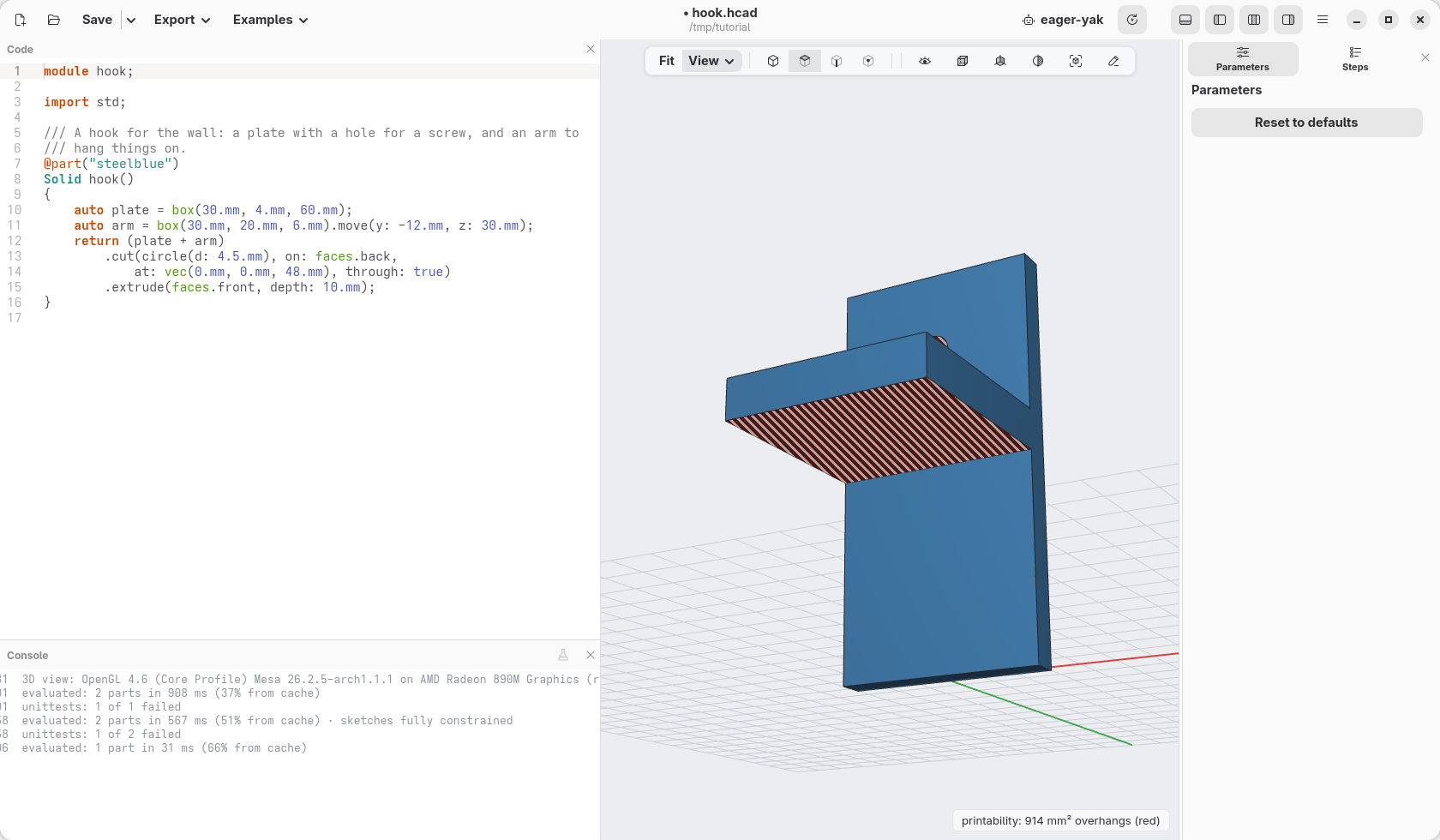

The underside of the arm and the top of the hole, in red

Standing up, the whole underside of the arm hangs in the air, and so does the top of the screw hole. But nothing says it must print standing up. Add .rotate(x: -90) at the end of the chain, after the .extrude(…) (move the ; there): the hook lies on its back, the side that goes against the wall flat on the bed, and the arm grows straight up from it. Nothing hangs any more, and the screw hole stands upright, round as it is.

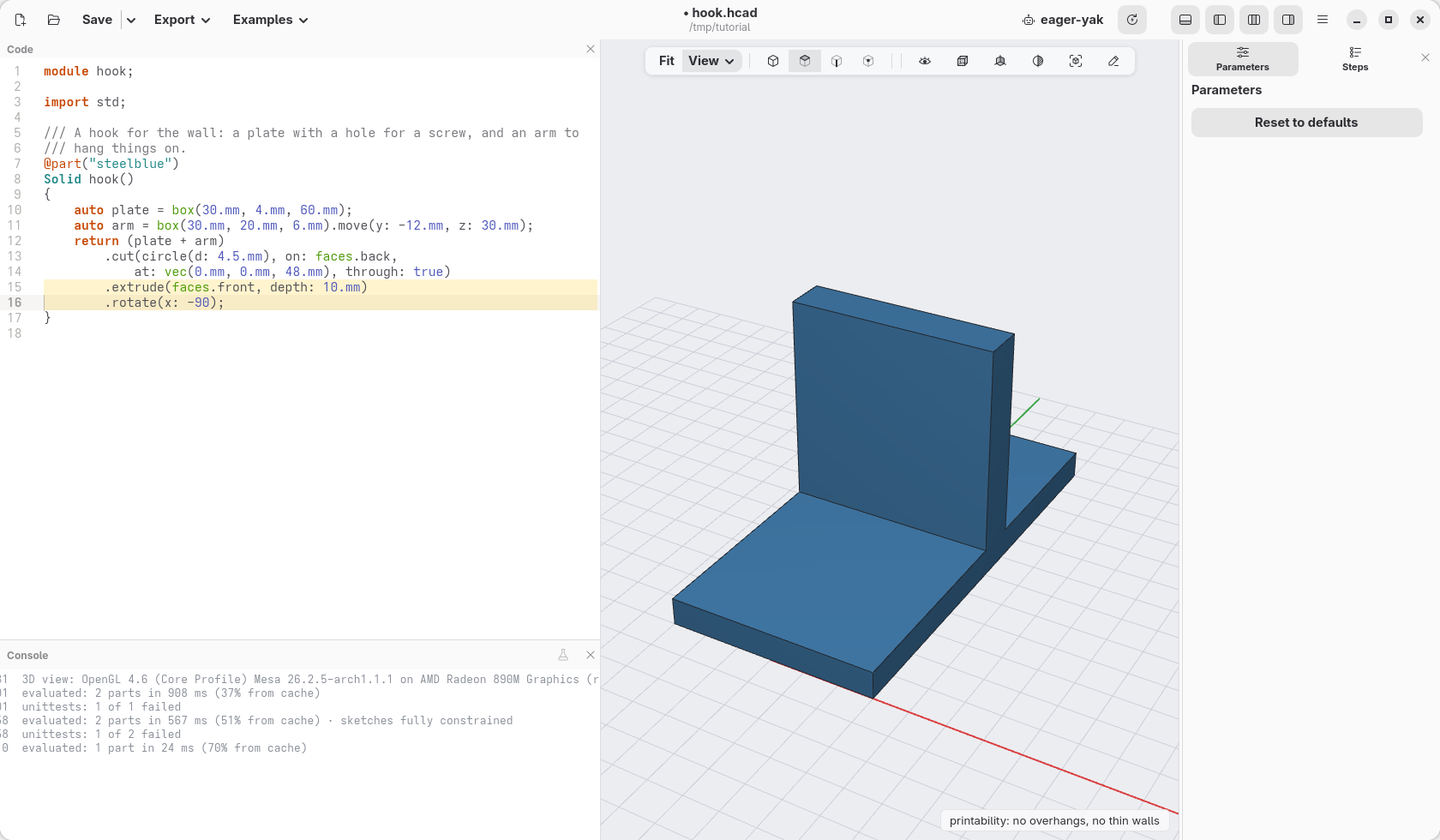

On its back: nothing overhangs

Choosing which way up a part prints is often the whole fix. (A hole that has to print lying sideways can be a teardrop(d: 4.5.mm) in place of the circle: a point at the top, with two 45° sides that print without supports.)

A name for a face

On its back, the hook's faces have changed places: faces.front now means another face, and a rounding written after the .rotate(…) with it would land somewhere else. A face you will come back to can be given a name instead, a tag, while it is still where you know it: before the turn, the arm's end is the front. Then round that face's edges by its name, after the turn:

        .extrude(faces.front, depth: 10.mm)
        .faces.front.addTag("end")
        .rotate(x: -90)
        .fillet(edges.of(faces.tagged("end")), r: 1.mm);

The name stays on the face however the hook is turned, and whatever is cut or rounded afterwards. In the view, clicking a tagged face shows its name, and the right-click menu writes it from then on; Tag face… in that menu adds a name to the face you clicked, at the end of the chain. Selectors and features says more.

Make it sturdy

Printed like this, the layers cross the arm where it meets the plate: the joint between two layers is the weakest place of a print, and the arm would snap there the first time something heavy hung on it. Two gussets, triangles that tie the arm to the plate, one at each side, spread the load over many layers. A triangle drawn on the ground, raised 3 mm, then stood up under the arm:

module hook;

import std;

/// A hook for the wall: a plate with a hole for a screw, and an arm to
/// hang things on.
@part("steelblue")
Solid hook()
{
    auto plate = box(30.mm, 4.mm, 60.mm);
    auto arm = box(30.mm, 20.mm, 6.mm).move(y: -12.mm, z: 30.mm);
    // a gusset: a triangle 20 mm along the arm and 20 mm down the plate,
    // 3 mm thick, stood up under the arm
    auto gusset = polygon([vec(0, 0), vec(0, -20), vec(20, 0)])
        .extrude(3.mm)
        .rotate(y: 90)
        .move(y: -2.mm, z: 30.mm);
    return (plate + arm + gusset.move(x: -15.mm) + gusset.move(x: 12.mm))
        .cut(circle(d: 4.5.mm), on: faces.back,
            at: vec(0.mm, 0.mm, 48.mm), through: true)
        .extrude(faces.front, depth: 10.mm)
        .rotate(x: -90);
}

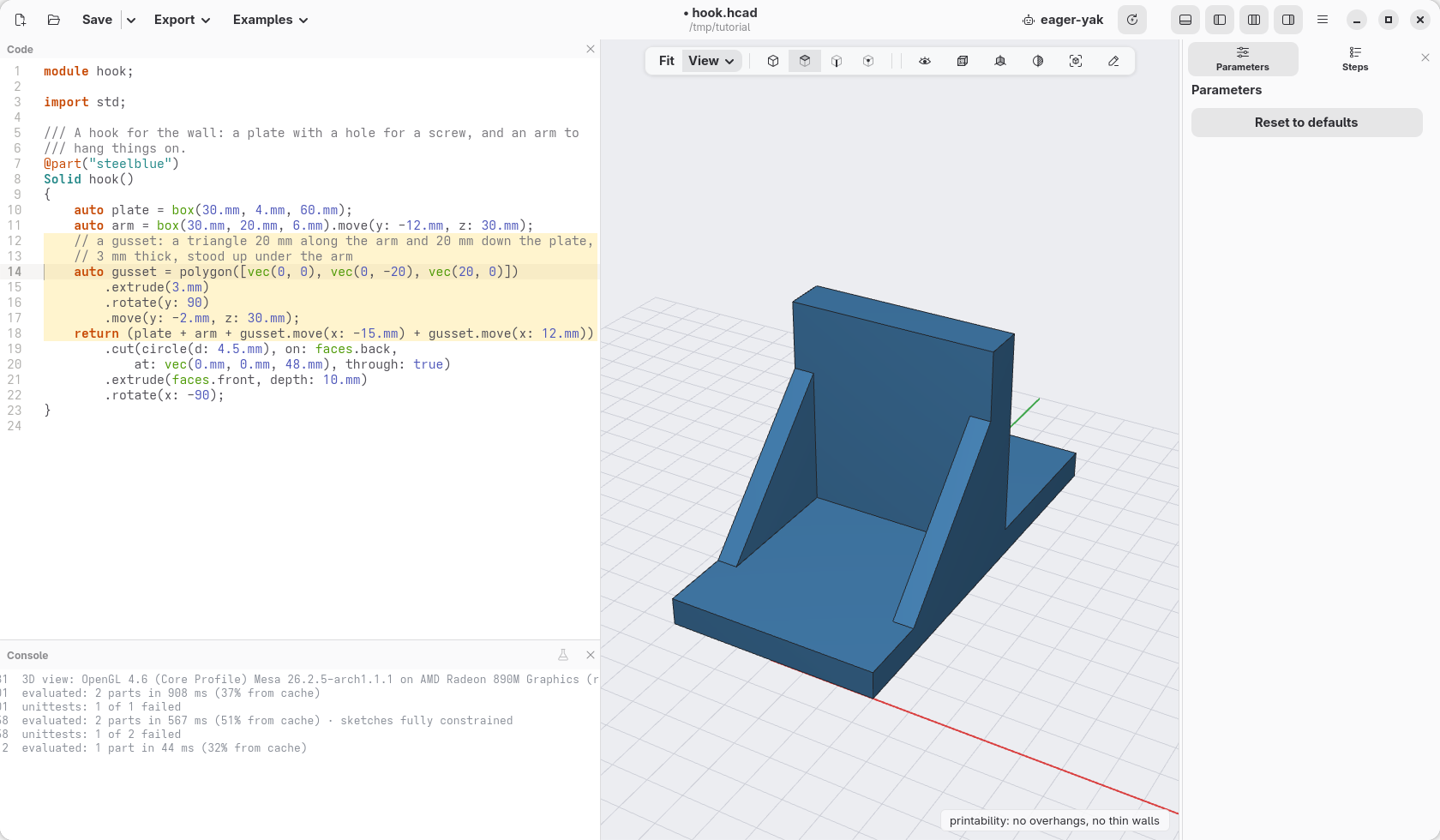

With two gussets

The gussets stand straight up too: still nothing to support. To keep a model printable as it changes, write it as a check, assert(hook.overhangs == 0.mm ^^ 2); in a unittest (thinWalls measures the thin walls). The fields under Printability change the angle and the thinnest wall, for your printer.

A word of honesty: we would not print this hook. It is not the prettiest hook ever made, nor the most useful: a flat arm with nothing at its end, and your jacket will slide off it at the first chance. But it is a start: give the arm a lip that turns up, round its edges, put a second screw in, and make a real one.

A label from a drawing

A label to push into the soil of the planter. The leaf is drawn in a drawing program (Inkscape, Illustrator, or any that saves SVG), and saved as leaf.svg next to the model; load reads its outline as a flat shape, like a rectangle or a circle. DXF files, from other CAD programs, work the same way.

module label;

import std;

/// A label to push into the soil of the planter: a leaf drawn in a drawing
/// program, a stake, and the name of the plant.
@part("forestgreen")
Solid label()
{
    // the outline of the drawing, a flat shape like a rectangle or a circle
    auto leaf = load("leaf.svg").centered;
    auto stake = rect(5.mm, 50.mm).move(y: -30.mm);
    auto name = text("BASIL", size: 6.mm, font: "Sans Bold").centered;
    return (leaf + stake).extrude(2.mm)
        + name.extrude(1.mm).move(z: 2.mm);
}

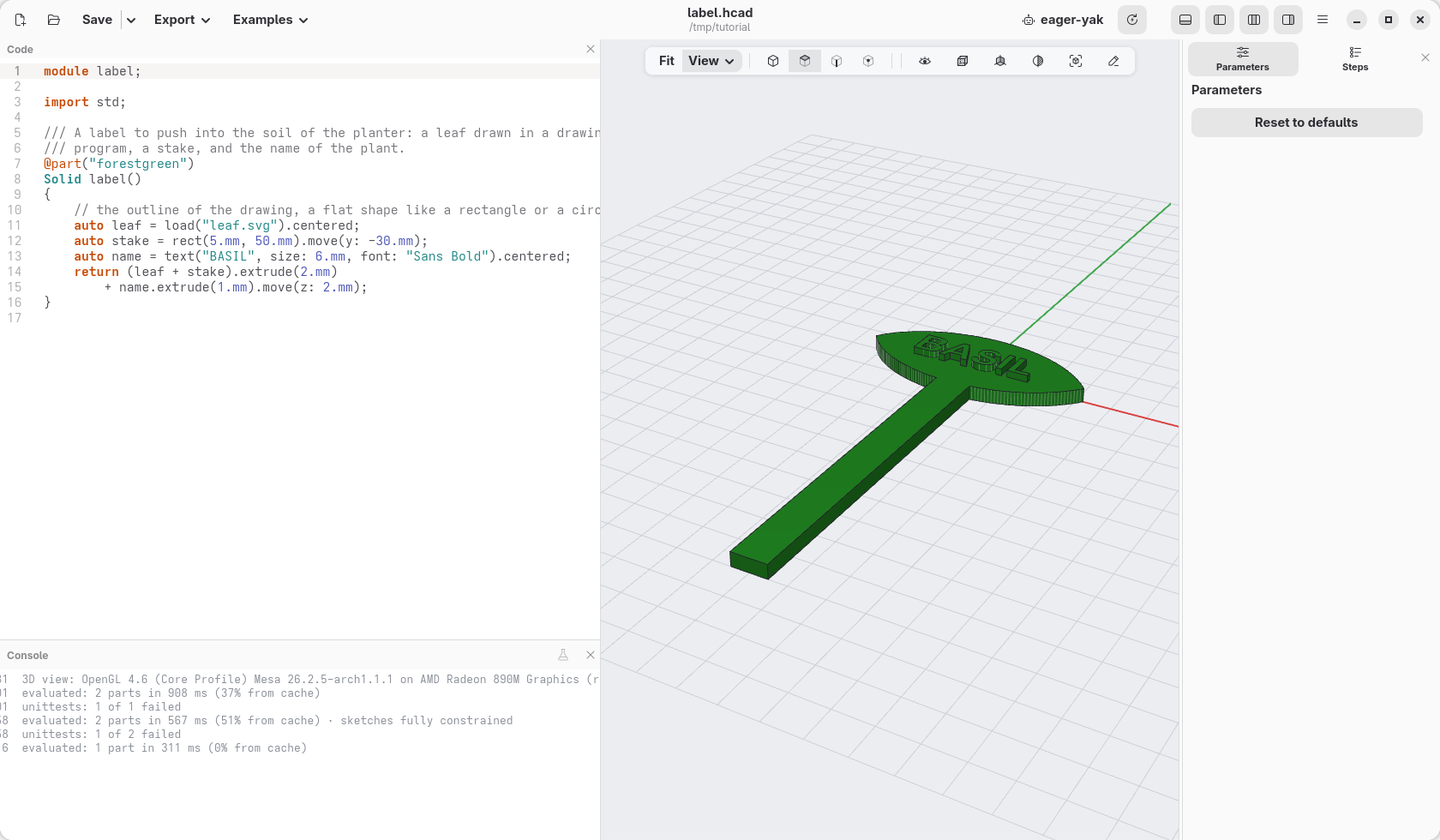

The label

The size comes from the drawing: a leaf 34 mm wide in the drawing program is 34 mm here. An outline inside another is a hole.

Constrained sketches

For outlines given by their sides rather than by coordinates ("this side is vertical, that one 30 mm long"), draw a sketch: points and lines, then the constraints, and hackerscad works out where the corners go.

module sketched;

import std;

/// A bracket whose outline is given by its sides: the corners are worked
/// out from the constraints.
@part("goldenrod")
Solid bracket()
{
    auto s = sketch();
    auto a = s.point(0, 0, fixed: true);
    auto b = s.point(40, 0);
    auto c = s.point(40, 30);
    auto d = s.point(0, 10);
    auto bottom = s.line(a, b), right = s.line(b, c);
    auto top = s.line(c, d), left = s.line(d, a);
    s.horizontal(bottom);
    s.vertical(right);
    s.vertical(left);
    s.length(bottom, 50.mm);
    s.length(right, 30.mm);
    s.length(left, 12.mm);
    s.fillet(c, 4.mm);
    return s.profile.extrude(8.mm);
}

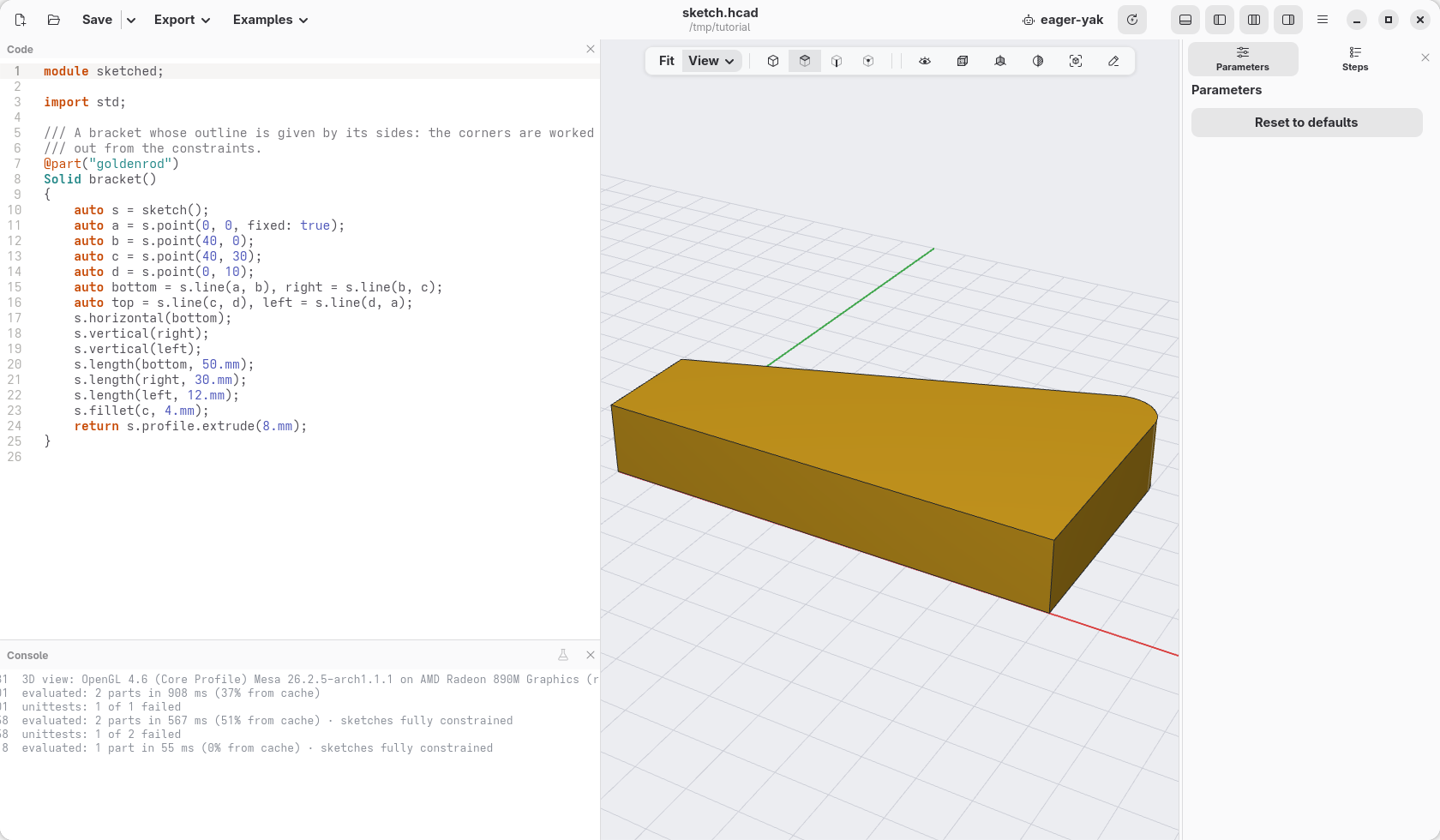

The bracket

The points start where they are written; the constraints move them (here the bottom becomes 50 mm, not 40). Put the cursor in the sketch's code (or click its step in Steps) and the view shows the sketch from above with its dimensions: click one to change it. Points still free to move are blue. On a line like s.length(left, 12.mm) what it makes or constrains turns orange; the cursor out of the sketch, or Esc, goes back to the model. Edit sketch…, in the right-click menu of a face the sketch made, and View › Sketches bring it back later. Chapter 13 drew Carlo, the bag clip, this way, from start to end.

A sketch on a face

A sketch can also be drawn on a flat face of a solid: body.sketch(faces.top). The face's edges are in it from the start, as references: fixed, drawn in violet, ready to measure from. s.edges lists them, the lowest side first and then round the face the other way from the clock's hands, as a rectangle's sides (bottom, right, top, left); s.origin is the face's centre. Here a groove runs along Carlo's lower jaw, 3 mm above its bottom side:

module grooved;

import std;

/// Carlo with a groove along its lower jaw, drawn on
/// its top face.
@part
Solid clip()
{
    auto body = carlo();

    // on the top face: Carlo's outline is in the sketch
    // as references, its lowest side first
    auto s = body.sketch(faces.top);
    auto bottom = s.edges[0];
    auto p = s.point(-5, -9), q = s.point(12, -9);
    s.slot(p, q, w: 1.5.mm);

    // both ends 3 mm above the bottom side, the left
    // one 6 mm from its corner, 18 mm long
    s.distance(p, bottom, 3.mm);
    s.distance(q, bottom, 3.mm);
    s.distance(p, bottom.start, 6.mm, along: X);
    s.distance(p, q, 18.mm);
    return body.cut(s.profile, depth: 0.6.mm);
}

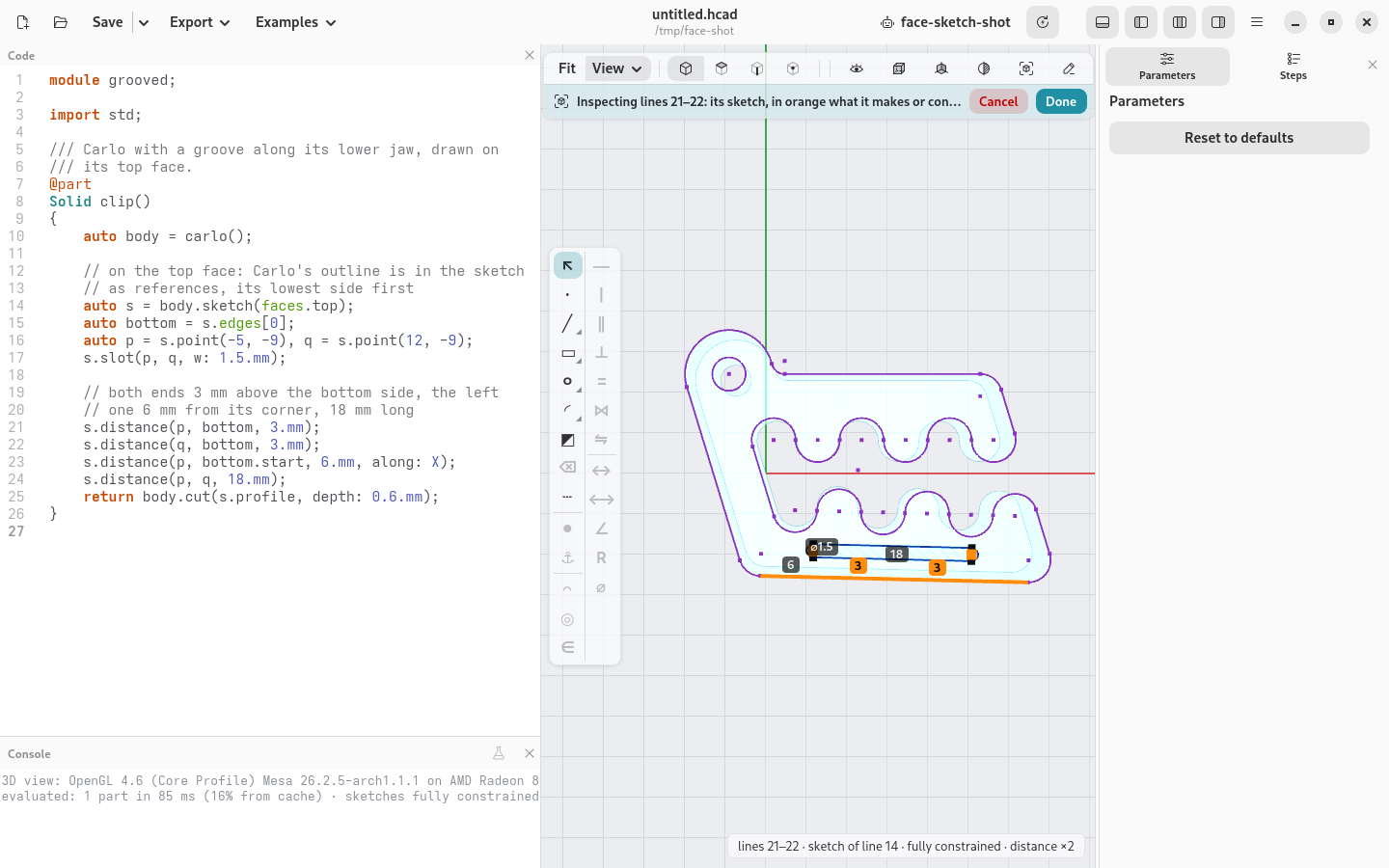

A sketch on Carlo's top face

The profile of such a sketch knows where it lies: body.cut(s.profile, depth:) digs it into the face, body.extrude(s.profile, depth:) raises it, with no on:. Make Carlo longer or shorter and the groove follows its bottom side. s.project(edges.…) brings other edges of the solid into the sketch, flattened onto its plane: the rim of a hole underneath, to centre something over it. In the 3D view, right-click a flat face and choose Sketch and planes › Sketch on face…: an empty sketch on it is written for you, its edges already there, ready to draw on. Not on a face but on a plane (XY, XZ, YZ, or auto mid = XY.offset(15.mm)): the planes button of the view bar shows them, and Sketch on plane… in a plane's right-click menu (or New sketch… in the View menu) writes auto s = sketch(XZ); the same way. A double click on a flat face (or Look at face in the same menu) turns the view straight at it; with a sketch shown, Look at sketch in the right-click menu turns it back onto the sketch after you have turned it round.

Drawing and constraining with the mouse

While a sketch is shown, and its code can be written from the window (the sketch kept in a variable, auto s = sketch();, in the model's own file, not made inside a loop), a bar runs down the left of the view.

Its left column draws: ↖ selects, ∙ puts a point, ╱ draws lines (click their points; on the first again they close, a double click, Enter or a right-click ends them), ▭ a rectangle by two corners, ○ a circle by its centre and a point on it, ◜ an arc by its centre, start and end. A button with a small mark in its corner has other kinds: right-click it (or click it again) for its menu. With the lines, ∿ a smooth curve through the points clicked; with the rectangle, one from its centre, one turned (a side, then how far the other), a regular polygon (its sides in the menu) and a slot; with the circle, an ellipse and a teardrop; with the arc, one through three points. The button keeps the kind chosen last. A click near a point of the sketch uses that point; near no point, the middle of a line or the place where two lines cross (construction lines too) shows a mark when you pass over it, and a click there makes a point that stays there (s.midpoint, or s.on both lines). Esc drops what is being drawn. Nothing is written until the shape is done: then its lines appear at the end of the sketch's code, as you would have typed them.

With ↖, a click on a point or a line selects it (again: it leaves; on nothing: none), a drag a box of them (what is wholly inside it; dragged from right to left, what it touches too). A drag that starts on a point, a line or a circle moves it: where you let go is written into its s.point(x, y), and the constraints keep it where they say (a point on a line slides along it). Right on the middle of a line, or where two lines cross, a mark shows: a click selects that place, and with a point selected too, Coincident keeps the point there (s.midpoint, or s.on both lines). The constraints that fit what is selected light up; the others say, when you point at them, what they need. Several lines and ∥: each parallel to the first. The constraints with a value (length, distance, angle, radius, diameter) ask for it in a field, the size it has now already written in: Enter writes it. Five lines and a length of 20 mm make one dimension and the others equal to it, so one number changes them all. ⌫ (or Delete) takes what is selected out of the code, with what is drawn on it and the constraints on them. ┄ (or X) turns what is selected into construction geometry: dashed guides, such as a centre line, to constrain to, never filled or extruded (again: back); with nothing selected, it makes what you draw next construction geometry. The area the profile will fill is tinted, so you see at once what will be extruded and what is a hole. A loop inside another is a hole, and where two loops overlap, so is the overlap; ◩ changes that: click inside a closed area and it turns full or empty, written as a point of its own, drawn in the areas' colour, and s.fill(inside) (or full: false). Constrain that point like any other to keep it in its area when the sketch changes (to the two places where the circles cross, say); left free, it does not count among the degrees of freedom. ✂ trims: the piece under the pointer turns red, between what crosses the line (the whole line when nothing does), and a click takes it away. The buttons under the constraints change what is selected: ⇥ carries a line on to another, ⧉ copies an outline a distance away, ⇆ mirrors across the line selected last, ∷ and ✲ repeat in a row or round the point selected last. Esc goes back a step at a time: the shape being drawn, then the tool and the selection (back to ↖), and only then out of the sketch.

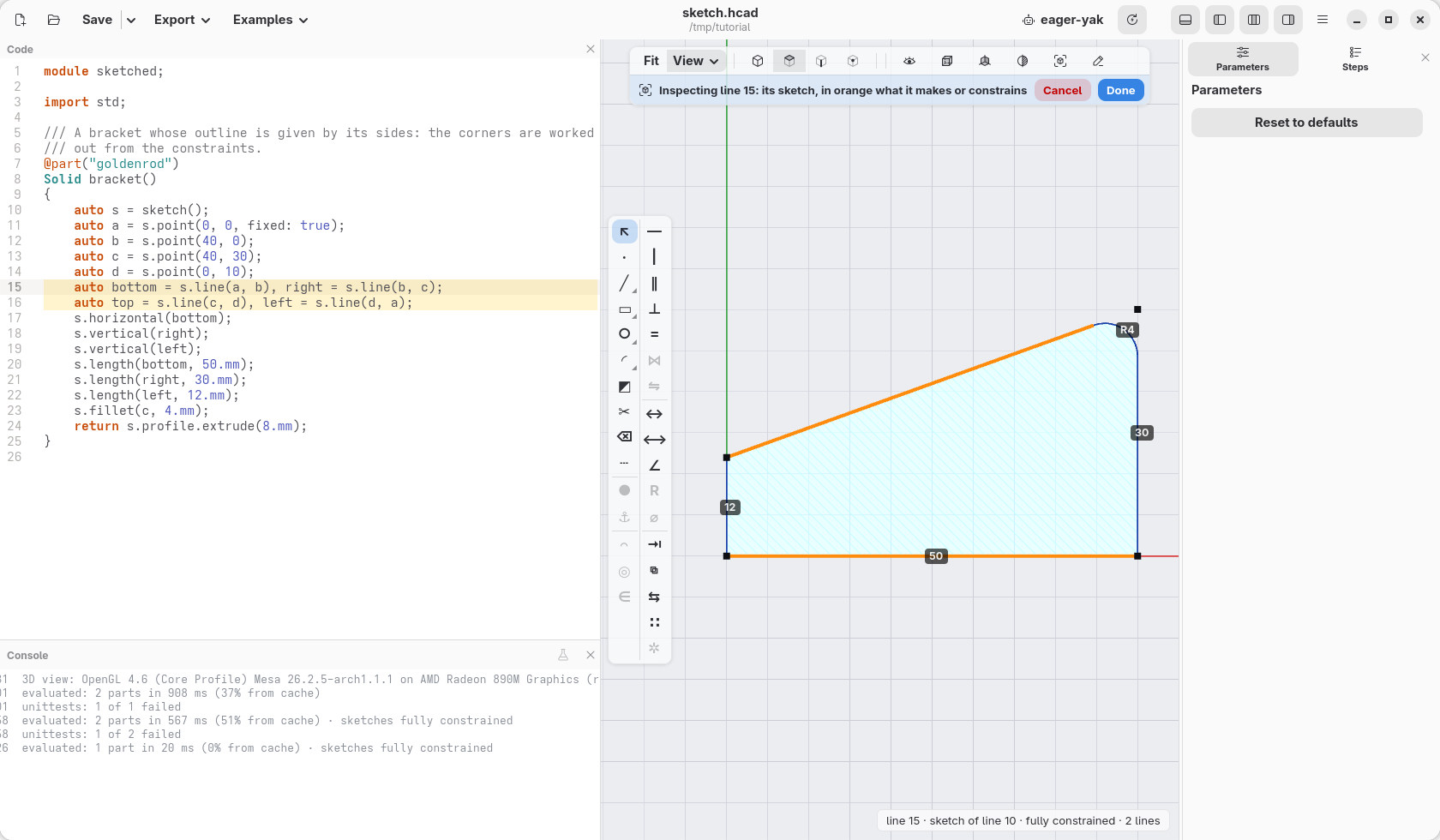

Two lines of the bracket selected: the tools that fit them light up

Every tool writes code, which Ctrl+Z takes back and which reads like the rest: s.parallel(bottom, top);. A line that had no name gets one when a constraint needs it (auto line2 = s.line(b, c);).

Curved shapes: lofts and sweeps

loft([…]) passes smoothly through outlines at different heights, a vase here; .sweep(path) moves an outline along a curve, the handle.

module jug;

import std;

@part("orange")
Solid jug()
{
    auto body = loft([
        circle(r: 20.mm),
        circle(r: 26.mm).move(z: 40.mm),
        circle(r: 12.mm).move(z: 80.mm),
    ]);
    auto vase = body.shell(open: faces.top, thickness: 2.mm);
    auto curve = spline([
        vec(12.mm, 0.mm, 72.mm), vec(30.mm, 0.mm, 74.mm),
        vec(40.mm, 0.mm, 52.mm), vec(24.mm, 0.mm, 30.mm),
    ]);
    auto handle = circle(d: 7.mm).sweep(curve);
    // the ends of the handle go into the wall: what would show inside goes
    return vase + handle - (body - vase);
}

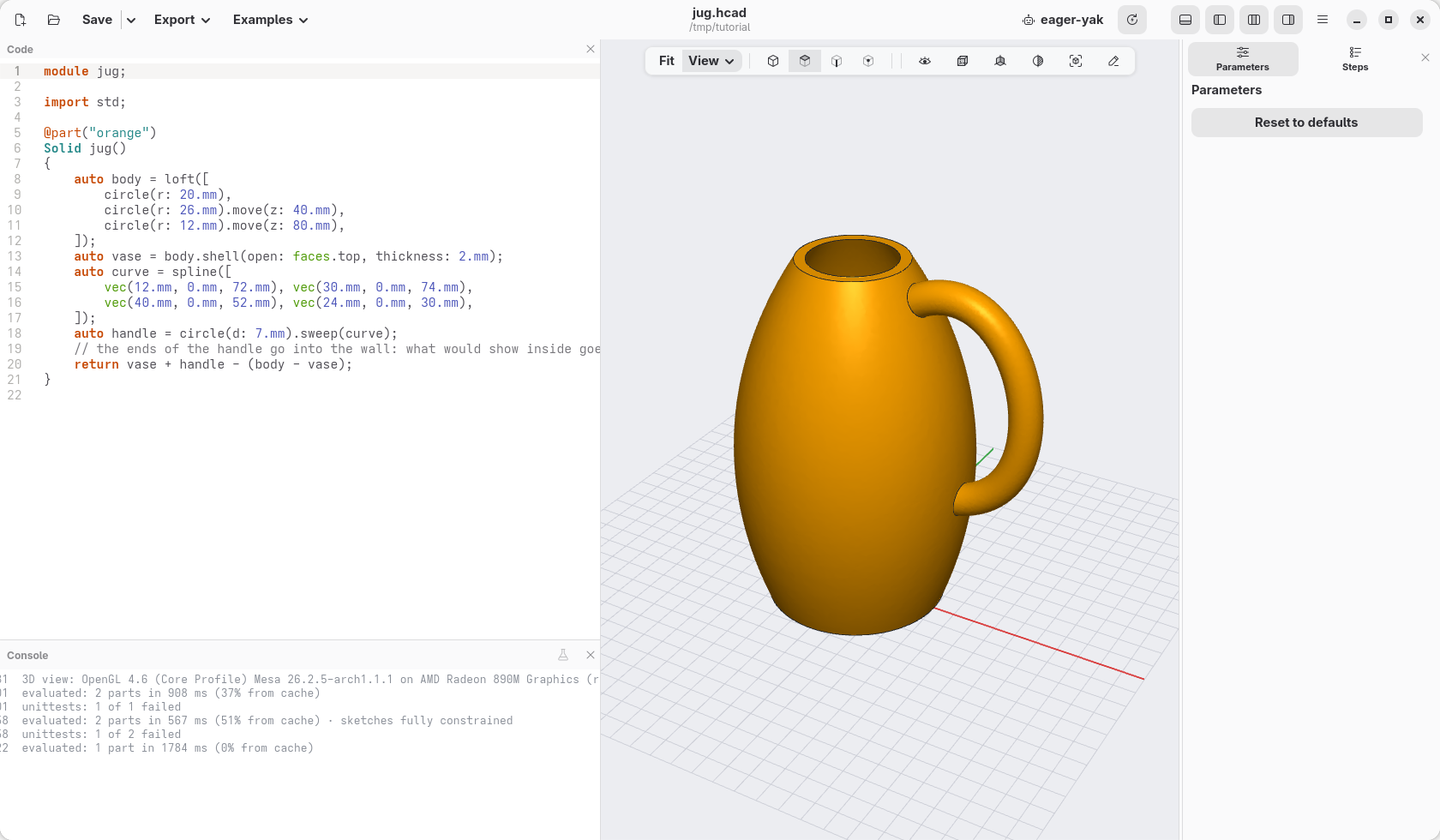

The jug

Libraries: screws, gears, joints, molds

module fixings;

import std;

@part
Solid lid()
{
    auto l = box(50.mm, 50.mm, 6.mm);
    // tools to take away: their top is on z = 0, going down
    l -= hole(M3, 6.mm, "counterbore").move(x: -15.mm, z: 6.mm);
    l -= hole(M3, 6.mm, "insert").move(x: 15.mm, z: 6.mm);
    l -= nutTrap(M3, 3.mm).move(y: 15.mm, z: 6.mm);
    return l;
}

@part("orange")
Solid gear() => spurGear(1.5.mm, 24, 6.mm, bore: 5.mm).move(x: 70.mm);

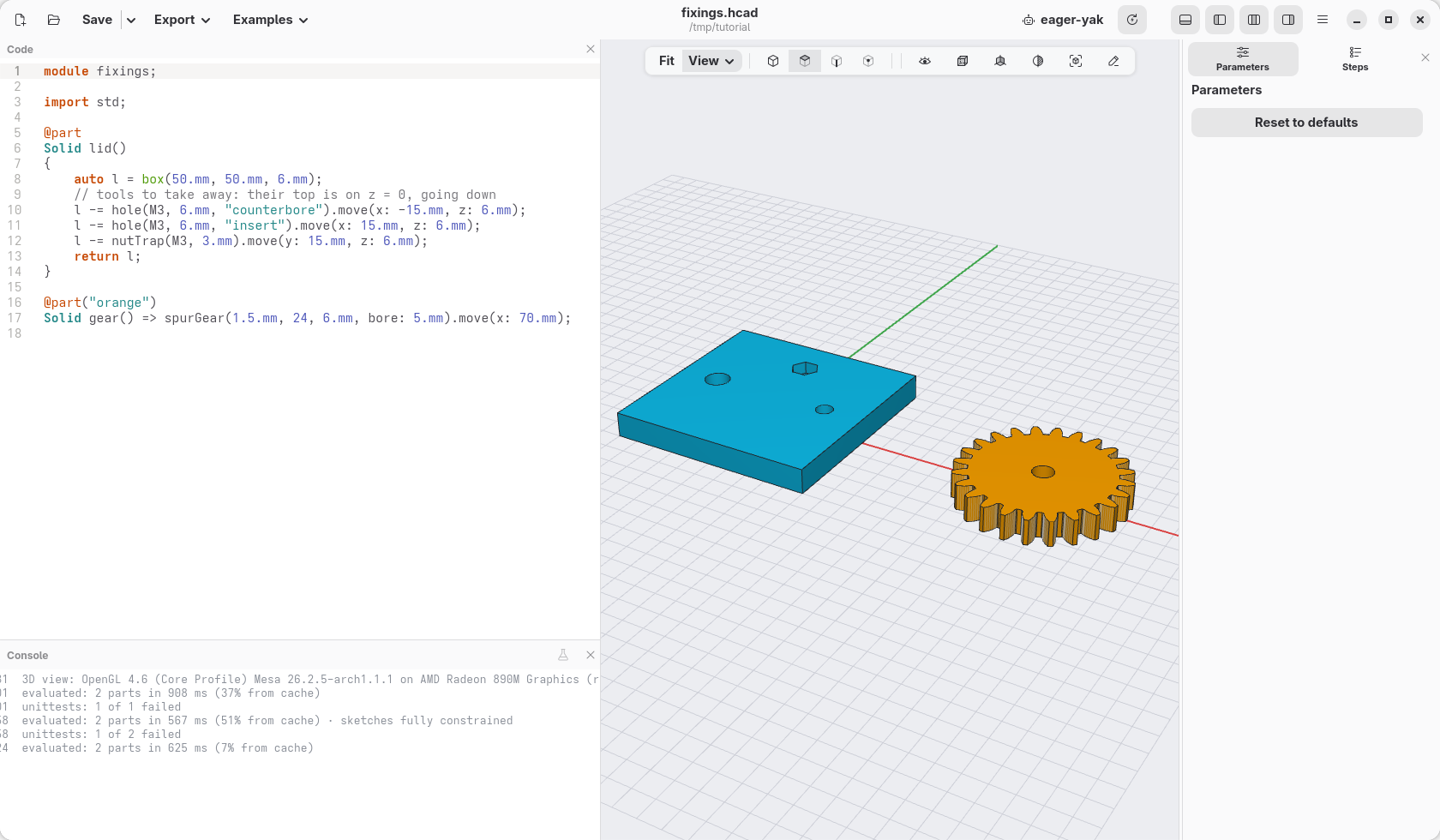

A lid with holes for M3 screws, and a gear

import std; brings in all of them; import std.hardware; only one, and import std.hardware : M3, hole; only those names.

Reference parts

A part that is only there to check the fit, see-through and left out of the exports:

@part("slategray", alpha: 0.35, export: false)
Solid bottle() => cylinder(d: 13.6.mm, h: 60.mm).move(z: 4.mm);

examples/07_knob.hcad is a knob on the shaft of a potentiometer, drawn this way.

Many parts from one function

@part makes one part of what a function returns, however many bodies it has: two halves of a cut become one object to print. @parts makes a part of each separate body instead, and finds how many there are each time the model is evaluated:

import std;

@param("Where to cut", min: -5.mm, max: 25.mm)
immutable cut = 10.mm;

immutable cutPlane = plane(origin: vec(cut, 0.mm, 0.mm), normal: X);

@parts("Yellow Pop", varied: true)
Solid jaws() => carlo().halves(cutPlane).above;

Carlo, the clip of chapter 13, is a good object to try things on: import std; and carlo() make one. halves cuts in two sides, .above and .below. Where the cut crosses Carlo's slot, the side above is two jaws, and the parts list shows jaws1 and jaws2, each in its colour (varied: true); move cut past the slot and there is one, jaws. split instead gives every piece of both sides as a list (Solid[]), a part per element with @parts: that is what Split… in the right-click menu writes for you. Colour in the right-click menu of one piece colours that piece alone (it writes .color(…) on it in the function); Default colour of jaws writes the colour of @parts, which the pieces not coloured on their own take. To pick pieces in code, .above(plane), .below(plane), .largest, .top… choose among them, and .pieces lists the bodies of any solid.

Technical drawings

A function marked @drawing makes a sheet with views, dimensions and sections, to export as PDF, SVG or DXF from the command line (hcad render -o tank.pdf) or by an agent. Added at the end of the planter, this one draws the tank:

@drawing
Drawing sheet()
{
    auto d = drawing(title: "Tank", material: "PETG");
    d.standardViews(tank);
    d.section(tank, XZ, label: "A");
    return d;
}

The command line

hcad does what the window does, without it: useful for scripts and for exporting many sizes at once.

hcad check planter.hcad                       # parts, sizes, checks
hcad check planter.hcad --printability        # overhangs and thin walls too
hcad render planter.hcad -o planter.3mf       # export
hcad render planter.hcad -o planter-views.png # a picture from four sides
hcad render planter.hcad -o basil.3mf --preset basil
hcad render planter.hcad -o big.3mf -D size=90.mm
hcad docs fillet                              # the reference of one function

When something goes wrong

From here, the language reference describes everything, and the examples are complete models to open and change.
