13. Carlo, drawn with a sketch

The clip hackerscad starts with is Carlo, the mascot: a bag clip whose toothed slot and keyring hole make a little crocodile. A new model takes it ready-made from a library, import std; and then carlo(); the first of the examples shows that library's code, with its numbers as parameters. This page draws it the same way, with a constrained sketch: you say what the outline is like ("the top is level, the back leans 17°, the teeth are all 2.5 mm and touch each other") and hackerscad works out where every corner goes. Then the outline is extruded.

Press New, select all the code (Ctrl+A) and paste the finished model over it, or follow the parts below.

Points, roughly where they go

A sketch starts empty: auto s = sketch();. Points are made with s.point(x, y). Where you put them is only where they start: the constraints move them. One point is pinned with fixed: true, so that the whole outline does not float away.

auto s = sketch();
immutable slope = tan(lean);
auto a = s.point(-back + top * slope, -top,
    fixed: true);
auto b = s.point(slot + 2 * toothR, -top);
auto c = s.point(slot - 2 * toothR, top);
immutable corner = -back - top * slope; // top left
immutable rise = corner + 2 * eyeR;
auto centre = s.point(corner + eyeR, top);
auto eyeBack = s.point(corner + 3.mm * slope,
    top - 3.mm);
auto nookCentre = s.point(rise + 1.mm,
    top + nook);
auto nookTop = s.point(rise + 1.mm, top);
auto nookEye = s.point(rise - 0.3.mm,
    top + 1.mm);

The block and the eye: level, leaning, tangent

Lines join the points; constraints say what the lines are like. The eye is an arc round the top corner: its centre on the line of the top, from the top over the corner down onto the back, which it touches. Where it rises from the top a small arc rounds the nook, touching both the top and the eye.

auto bottom = s.line(a, b);
auto left = s.line(a, eyeBack);
auto topSide = s.line(c, nookTop);
auto ring = s.arc(centre, nookEye, eyeBack);
auto rounding = s.arc(nookCentre, nookEye,
    nookTop);
s.horizontal(topSide);
s.angle(topSide, left, 90.deg - lean);    // the back leans 17°
s.on(centre, topSide);                    // the eye's centre on the top's line
s.radius(ring, eyeR);
s.tangent(left, ring);                    // the back touches the eye
s.radius(rounding, nook);
s.tangent(topSide, rounding);             // the nook rounded: touching the top…
s.tangent(ring, rounding);                // …and the eye
s.distance(a, centre, 2 * top, along: Y); // the block's height

The eye is optional: a @param and an if make one sketch or the other. Without it the back meets the top in a corner, rounded with s.fillet:

if (eye)
{
    … the ring, the rounding, the hole …
}
else
{
    auto d = s.point(corner, top);
    left = s.line(a, d);
    topSide = s.line(c, d);
    s.distance(a, d, 2 * top, along: Y);
    s.fillet(d, 2.5.mm);
}

left and topSide are declared before the if (SketchLine left, topSide;), so that the constraints after it use whichever lines it made.

The teeth: arcs, all alike, end to end

Each row of teeth is a chain of half circles, a pocket and a tooth in turn. A loop makes them: the points along the row, then an arc between each two, its centre level with them, its radius the tooth radius.

foreach (k; 0 .. 2 * teeth)
{
    immutable x = 2 * toothR * k + toothR;
    auto cl = s.point(x, -axis);
    // counter-clockwise from start to end: left to right
    // goes under
    auto pl = k % 2 == 0
        ? s.arc(cl, lower[k], lower[k + 1])
        : s.arc(cl, lower[k + 1], lower[k]);
    s.radius(pl, toothR);
    s.horizontal(lower[k], cl);
    s.horizontal(lower[k], lower[k + 1]);
    …
}

Two arcs share their end point, so they meet; half circles whose ends are level with their centres meet smoothly, without a corner.

Then the rows are placed: the gap between them and how far they are from the bottom. The end of the slot leans like the back, the back's thickness behind it (measured square to the leaning back), and it touches the first pocket of each row, so the slot ends round, without a corner. The first pocket of each row starts where the end touches it, not at a point on the row. The tips of the jaws lean like the back too, and touch the last tooth of their row in the same way:

auto end = s.line(lower[0], upper[0]);
s.parallel(end, left);
s.distance(lower[0], left, back * cos(lean));   // from a point to a line
s.tangent(end, firstLower);
s.tangent(end, firstUpper);
s.parallel(tipLow, left);
s.parallel(tipUp, left);
s.tangent(tipLow, lastLower);
s.tangent(tipUp, lastUpper);

The mouth

The upper row is level; the lower one tilts by mouth, a parameter: down to open the slot towards the tips, so that the clip slides on easily, up (a negative angle) to close it, so that it holds tighter. Both rows start on the end's line, at the point start; each row is a construction line (construction: true), a line that guides the others but is not part of the outline, with the lower centres and points on it:

auto start = s.point(axis * slope, -axis);
s.on(start, end);
s.distance(a, start, top - axis, along: Y);     // the rows' height
s.distance(start, upper[1], 2 * axis, along: Y); // the gap between them
auto lowerRow = s.line(start, lowerOnRow[$ - 1],
    construction: true);
auto upperRow = s.line(upper[1], lastCentre,
    construction: true);
s.angle(lowerRow, upperRow, mouth);
foreach (p; lowerOnRow[0 .. $ - 1])
    s.on(p, lowerRow);

The bottom drops with the lower row, from below start: one more point, under, and a construction line from it to b, parallel to the row.

Corners, a hole, and the outline

s.fillet(p, r) rounds the corner where two lines meet. A circle inside the outline becomes a hole: the keyring hole, s.circle(centre, d: 3.8.mm) in the middle of the eye.

foreach (p; [a, b, c])
    s.fillet(p, 2.5.mm);
return s.profile.extrude(height);

s.profile solves the sketch and gives its closed outline, holes and all, as a profile: extrude stands it up.

See the sketch

Put the cursor anywhere in the sketch's code, from auto s = sketch(); down to s.profile, a foreach, a brace or a comment included (or click the sketch() step in Steps): the view shows it from above, with its dimensions, and reads like a drawing (Orthographic in the display menu makes it flatter still). Click a dimension to change it: the code changes with it. Points that can still move are blue; here none can. What the cursor's line does is orange: s.tangent(left, ring) turns the back and the eye orange, s.angle(topSide, left, 90.deg - lean) the two sides and their 73°, and the s.fillet in the loop all three rounded corners. Move the cursor out of the sketch, or press Esc, and the model comes back; the pin in the bar over the view keeps the sketch there while you look at other code. Once the clip is made, right-click any of its faces and choose Edit sketch… to come back here.

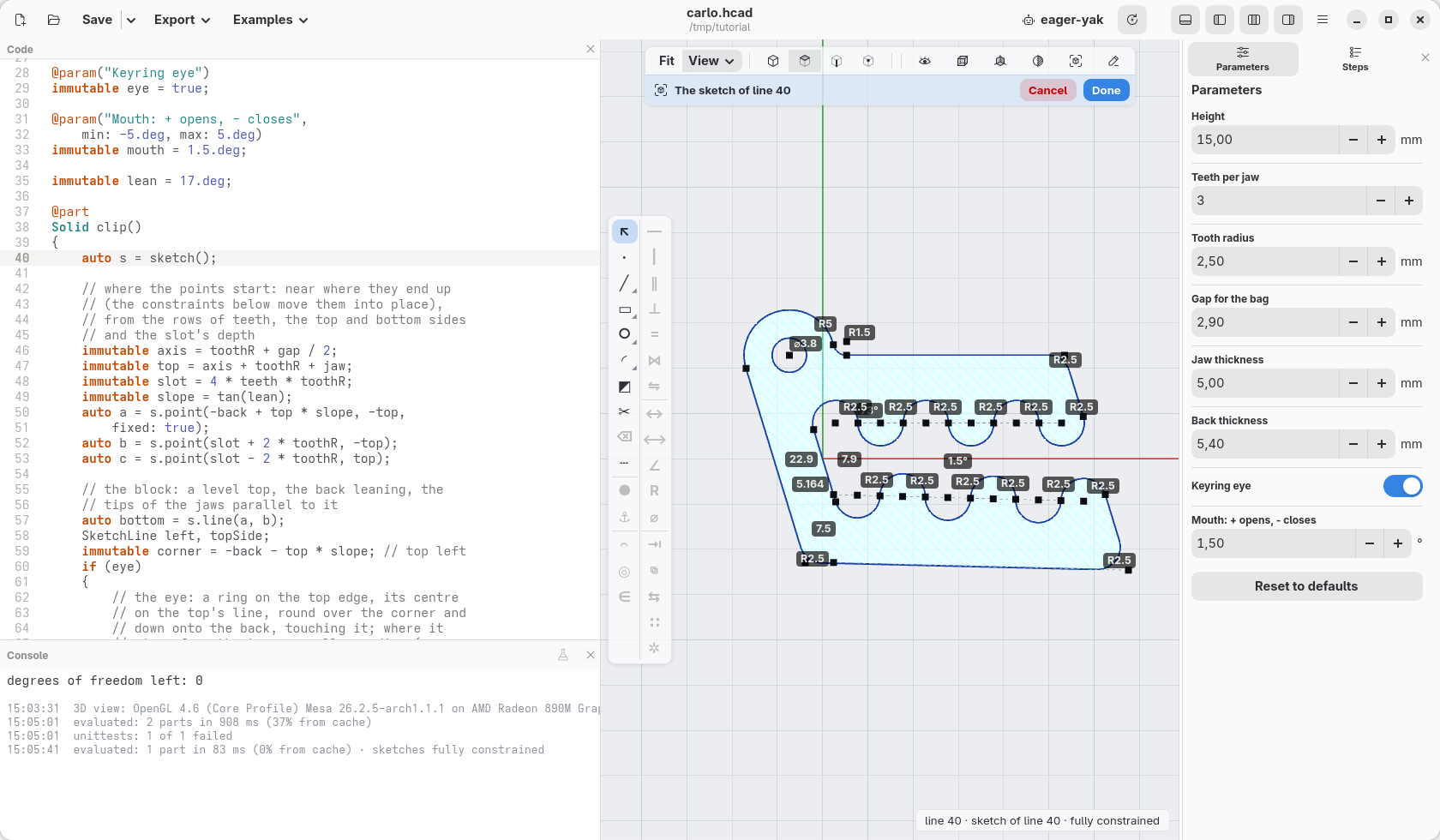

The sketch of Carlo, seen from above

s.dof is how many ways the sketch can still move: the model writes it in the console, and here it is 0, a fully constrained sketch. Take a constraint out and the console says which points are free; give two that disagree and the error points at both.

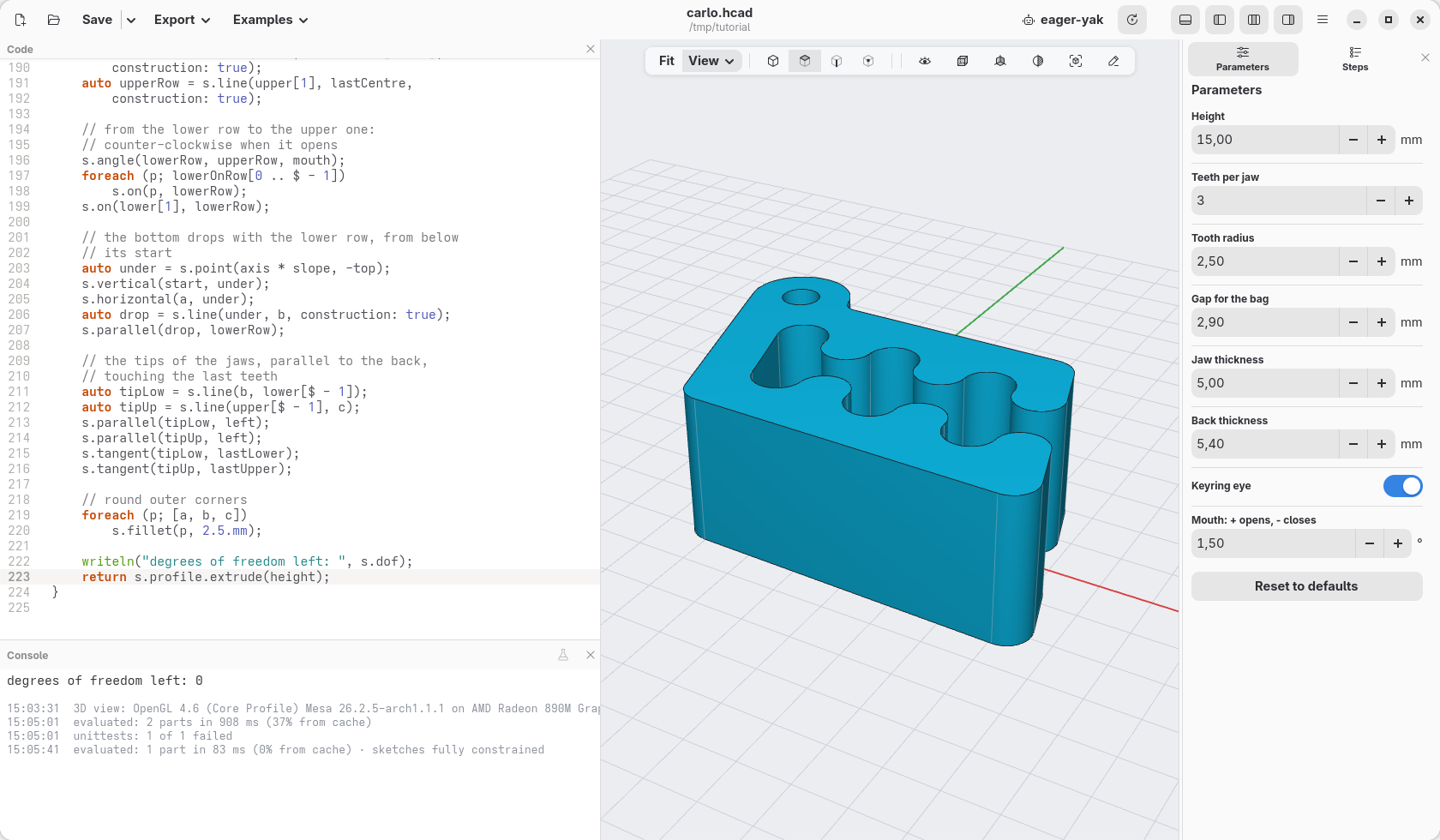

Carlo extruded

Change it

Because the outline is told by its rules, it keeps them when the numbers change. In Parameters, set Teeth per jaw to 5: the rows get longer, the block follows, the back still leans 17°, the slot still ends round and the eye still touches the back.

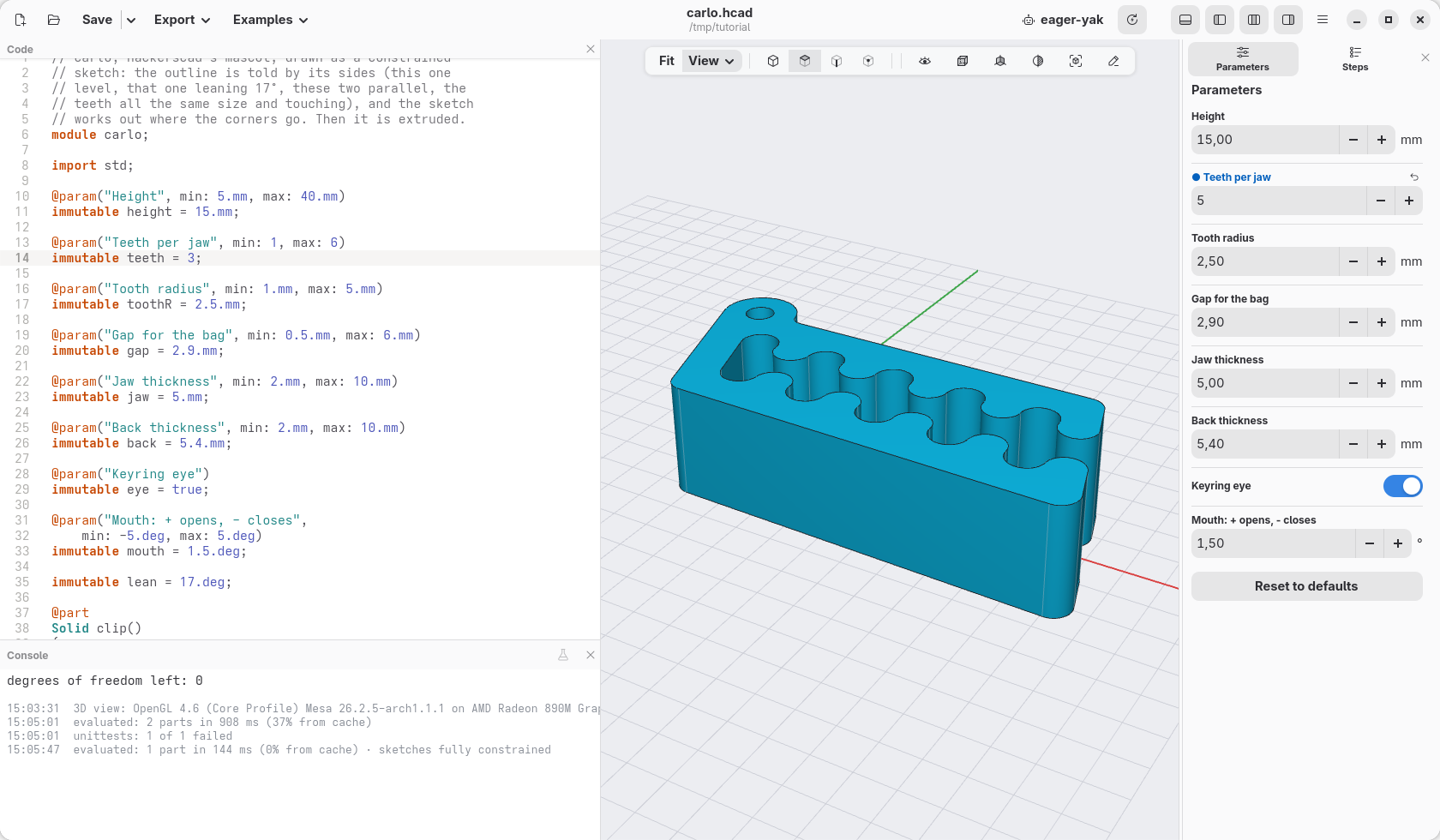

Carlo with five teeth

The constraints a sketch has: coincident, fix, horizontal, vertical, length, distance (between points, along X or Y, or from a line), on (a point on a line, circle or arc), parallel, perpendicular, angle, equal (lengths or radii), radius, diameter, tangent, midpoint, symmetric and concentric; the language reference describes each one.
